Product Description

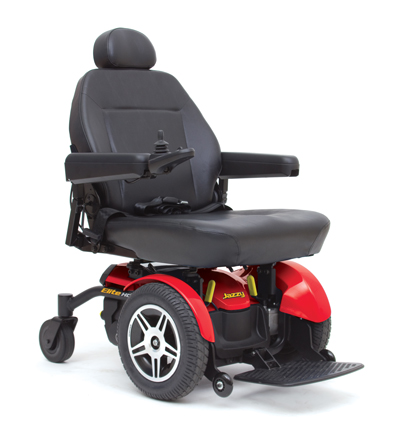

Pride Jazzy Elite HD Power Wheelchair
The Jazzy® Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance in a stylish, highly maneuverable package.
Specifications
| Model | Jazzy Elite HD |
| Weight Capacity | 450 lbs.* |
| Turning Radius | 24" |
| Width | 24.5" |
| Length | 35.5" |
| Maximum Speed** | Up to 4 mph |
| Ground Clearance | 3" |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 14" solid |
| Rear Wheels | 6" Solid casters |
| Drivetrain | Two-motor, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seating | 24"W x 24"D |
| High-Back Seat-to-Floor Range | 20" - 22" |
| Synergy Seating | 24"W x 24"D |
| Synergy Seat-to-Floor Range | 15.75" - 17.75" |
| Standard Electronics | 60A, Dynamic |
| Battery Size | 12 volt, NF-22 |
| Standard Battery Charger | 5A, off-board |
| Per-Charge Range** | Up to 9.8 miles |
| Battery Weight | 37 lbs. each |
| Base Weight | 89 lbs. |
| Standard Seat Weight | 51.5 lbs. (high-back) |
| Standard Seat Size | 20" x 18"-20" |
| Medicare Code Coverage | Group 2: Heavy Duty (K0824/K0825) |
| Color Options | Red or Blue |
| Warranty | 5-year limited warranty on frame; 13-month limited warranty on electronics; 13-month limited warranty on drive motors |
| Notes | *Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18" deep seat configurations. |
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
*Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments
**Speed & range vary with user weight, terrain type, battery charge, battery condition and tire pressure.
